STAR UML 로 C++ 구조 분석하기

shint의 이미지








Visual Studio 에 ClassDiagram.cd 나 Visio 가 가장 효율적이지만. XML이나 XSD 로 뽑는 방법을 잘 모르겠다.






http://istudyhard.tistory.com/archive/201106




http://sourceforge.net/projects/staruml/files/staruml/5.0/




이건 잘 되는거 같다.






1. NEW 프로젝트 생성

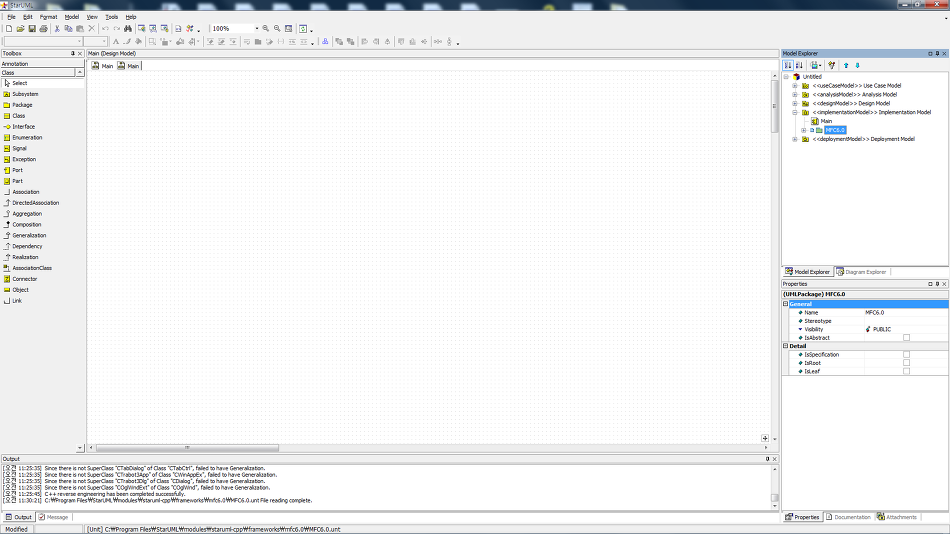

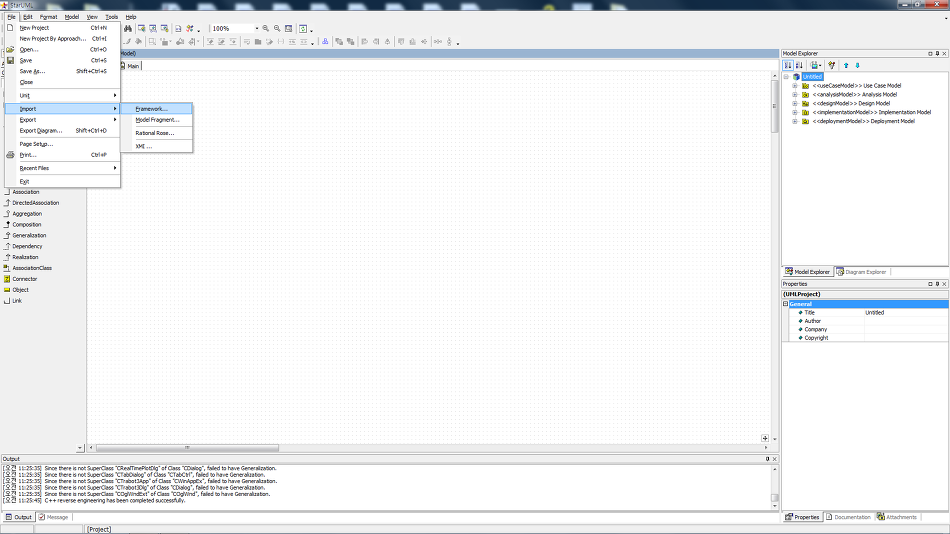

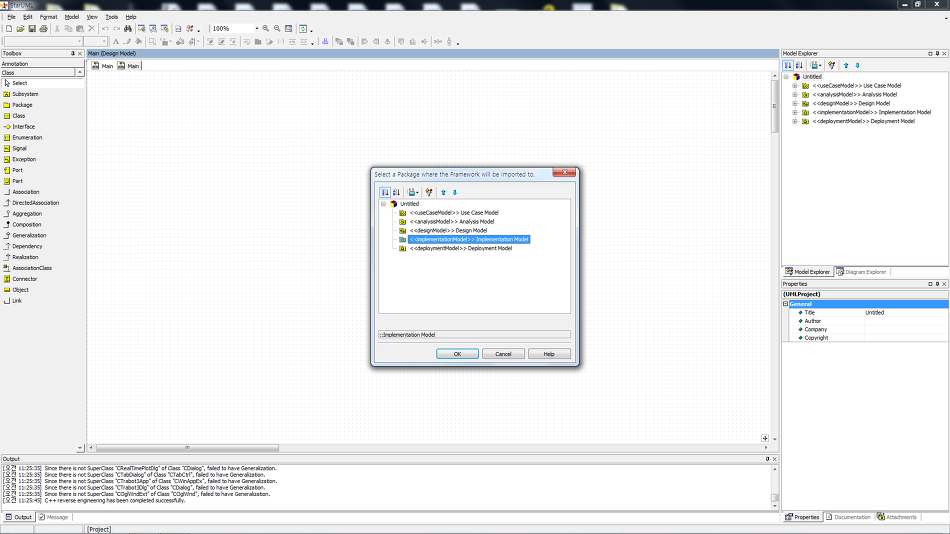

2. IMPORT - Microsoft Foundation Class 6.0 (라이브러리 포인트 얻기)


3. Implemention 선택




4. Model Exploer 에서 Implemention 마우스 우측 버튼 클릭으로 선택

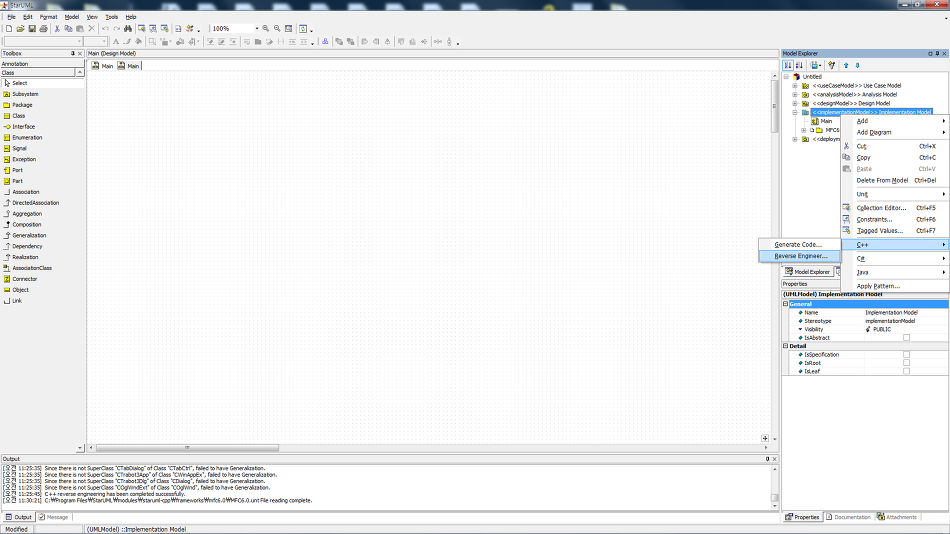

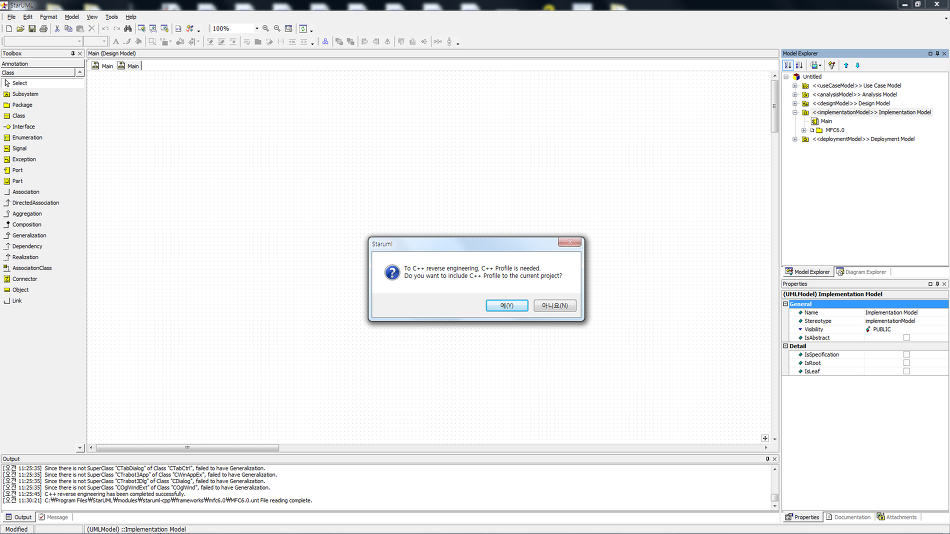

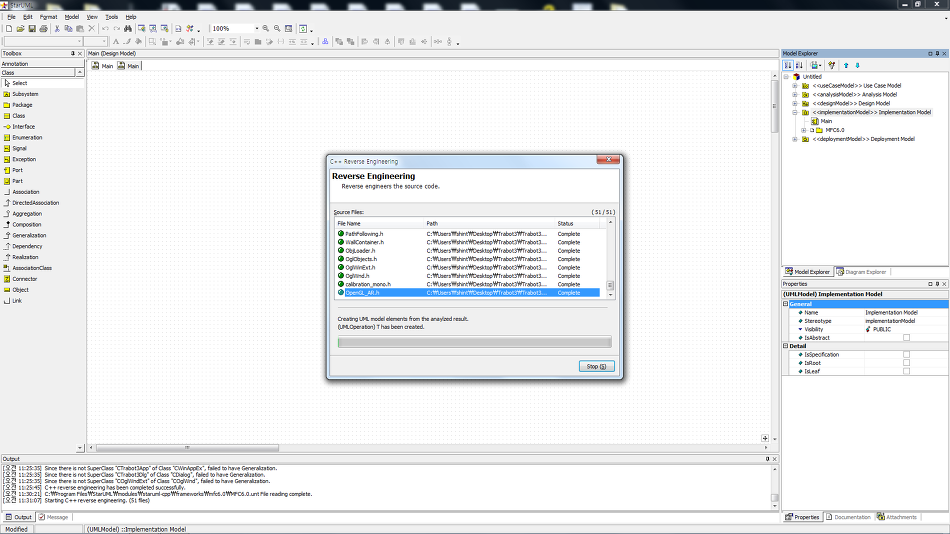

5. 팝업 메뉴에서 C++ - Reverse Engineer 선택

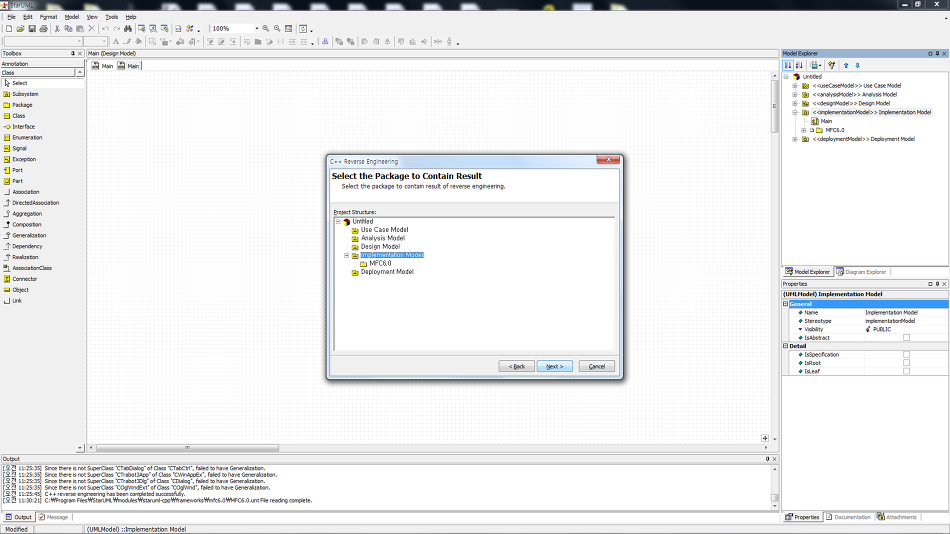

6. 개발중인. 프로젝트 폴더 선택


7. Implemention 선택

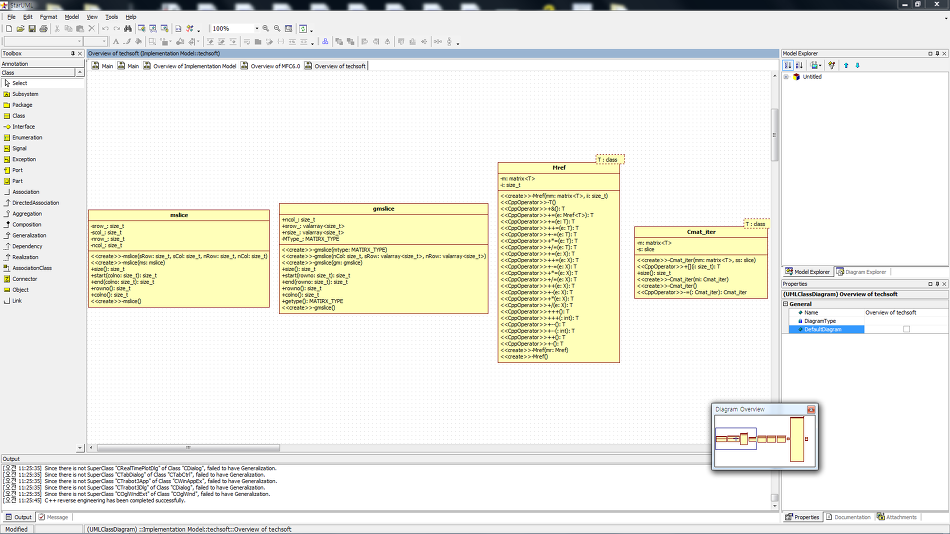

생성된 화면을 보는데. 너무 커서 어려우니까. 화면 중앙의 우측 밑에 작은 버튼을 선택하면.


미리보기 화면으로 원하는 좌표를 이동하며 볼 수 있다.




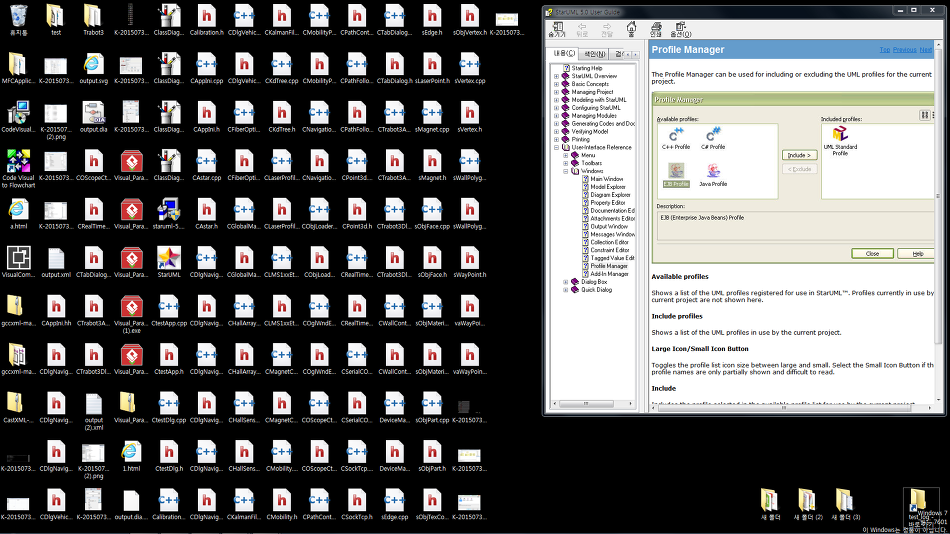

.chm 설명 문서도 있다.






//추가로


CPP2DIA


DIA 뷰어 등과 함께 사용하면 좋다. (그런데. 클래스 내용이 70% 정도 빠져버리는거 같아서 불안하다.)


DIA 에서 XSL 을 사용하면. UML 을 C++ 소스로도 변환이 가능하다.




//


Visio 2007. 2010 버전을 사용해도 될거 같지만. 아직 확인하지는 않았다.










//찾아보니. 이거 좋습니다.


Enterprise Architect - (소스 분석 도구) ★★★★★


http://www.devpia.com/Maeul/Contents/Detail.aspx?BoardID=51&MAEULNo=20&no=8789&ref=8789
