opengl을 이용하여 그래프 그리는 프로그램을 만들고 있는데요....

cambel의 이미지

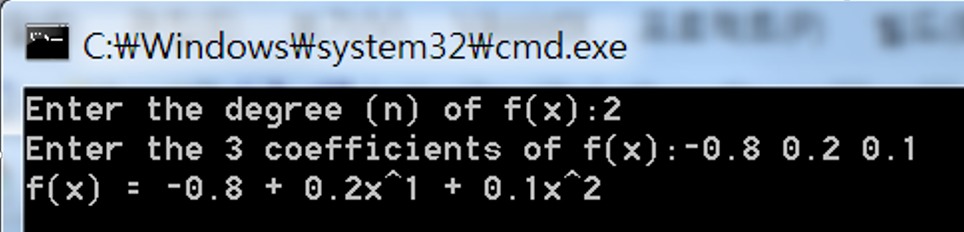

아래 첨부 파일과 같이 수식을 입력하면
화면에는 그래프 창과 콘솔창이 뜹니다.

그리고 그래프 창에서 '+' 또는 '-'를 누르면 샘플링의 수가 변해서
그래프의 모양이 변해야 하는데 그대로 입니다.

어떻게 해야 모양이 바뀔까요?

void KeyboardFunc(unsigned char key, int x, int y)
아마도 위의 함수를 수정해야 할거 같은데....
잘 모르겠습니다. ㅠㅠ

답변 좀 부탁드릴게요...
감사합니다.

#include <stdlib.h>
#include <stdio.h>
#include <gl/glut.h>
#include <vector>
#include <iostream>
#include <cmath>

using namespace std;

int width = 600, height = 600;
int num_sample = 100;

void Render();
void Reshape(int w, int h);
void glutPostRedisply();
void SetupViewTransform();
void SetupVeiwVolume();
void glutKeyboardFunc();

void KeyboardFunc(unsigned char key, int x, int y);
void Input_ftc();

int degree = 0;

vector <double> Coefficient_List;

int main(int argc, char **argv)
{
	glutInit(&argc, argv);

	glutInitWindowSize(width, height);  //Create an application window of 600 x 600
	glutInitWindowPosition(0, 0);

	glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB | GLUT_DEPTH);

	glutCreateWindow("hw5");

	glutDisplayFunc(Render);

	Input_ftc();
	glutKeyboardFunc(KeyboardFunc);

	glutMainLoop();

	return 0;
}

void SetupVeiwTransform()
{
	glMatrixMode(GL_MODELVIEW);
	glLoadIdentity();
	glTranslatef(0.0, 0.0, -10.0);
}

void SetupViewVolume()
{
	glMatrixMode(GL_PROJECTION);
	glLoadIdentity();
	glOrtho(-10.0, 10.0, -10.0, 10.0, -10.0, 10.0);  //x = -10, x = 10, y = -10, y = 10, z = -10, z = 10
}

void Render()
{
	glClearColor(1.0f, 1.0f, 1.0f, 0.0f);   //Initialize its background to white color
	glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

	SetupVeiwTransform();
	SetupViewVolume();

	glMatrixMode(GL_MODELVIEW);

	glColor3f(0.0, 0.0, 0.0);
	glBegin(GL_LINES);
	glVertex3f(-10.0, 0.0, 0.0);
	glVertex3f(10.0, 0.0, 0.0);
	glEnd();

	glColor3f(0.0, 0.0, 0.0);
	glBegin(GL_LINES);
	glVertex3f(0.0, 10.0, 0.0);
	glVertex3f(0.0, -10.0, 0.0);
	glEnd();

	for (int i = 0; i < 20; i++)
	{
		glColor3f(0.0, 0.0, 0.0);
		glBegin(GL_LINES);
		glVertex3f(-0.1, -10.0 + i, 0.0);
		glVertex3f(0.1, -10.0 + i, 0.0);
		glEnd();
	}

	for (int i = 0; i < 20; i++)
	{
		glColor3f(0.0, 0.0, 0.0);
		glBegin(GL_LINES);
		glVertex3f(-10.0 + i, 0.1, 0.0);
		glVertex3f(-10.0 + i, -0.1, 0.0);
		glEnd();
	}

	if (Coefficient_List.size() > 0)
	{
		glColor3f(1.0, 0.0, 0.0);
		glBegin(GL_LINE_STRIP);
		for (int i = 0; i < num_sample; ++i)
		{
			double x = -10.0 + (20.0 * (double)i / (double)num_sample);
			double y = 0.0;
			for (int j = 0; j <= degree; ++j)
			{
				y = y + (Coefficient_List[j] * pow(x, j));
			}
			glVertex3f(x, y, 0.0);
		}
		glEnd();
	}
	glutSwapBuffers();
}

void Reshape(int w, int h)
{
	glViewport(0, 0, w, h);
	width = w;
	height = h;
}

void KeyboardFunc(unsigned char key, int x, int y)
{
	switch (key)
	{
	case 'n':
	case 'N':
		Coefficient_List.clear();
		Input_ftc();
		break;

	case '+':
		num_sample++;

		break;

	case '-':
		if (Coefficient_List.size() < 0)
		{
			num_sample = 0;

		}
		else
		{
			num_sample--;

			break;
		}
	}
	glutPostRedisplay();

}

void Input_ftc()
{
	double co_tmp = 0.0;
	printf("Enter the degree (n) of f(x) : ");
	scanf("%d", &degree);
	printf("Enter the coefficients of f(x) : ");

	for (int i = 0; i <= degree; i++)
	{
		scanf("%lf", &co_tmp);
		Coefficient_List.push_back(co_tmp);
	}

	printf("f(x) = ");

	for (int i = 0; i <= degree; i++)
	{
		if (i == 0)
		{
			if (i == (degree))
				printf("%lf \n", Coefficient_List[i]);
			else
				printf("%lf + ", Coefficient_List[i]);
		}

		else
		{
			if (i == (degree))
				printf("%lfx^%d \n", Coefficient_List[i], i);
			else
				printf("%lfx^%d + ", Coefficient_List[i], i);
		}
	}
}
File attachments:
첨부파일 크기
Image icon 12.png160.17 KB
